CNC Turning Services
From precision shafts and fittings to complex multi-feature components, Resolute Precision Manufacturing delivers Custom CNC turning with live tooling, Swiss CNC, multi-axis machining, and high-volume bar-fed production. As an experienced CNC turning company, we produce consistent, precision-machined parts to your specifications.
Request a QuoteTurning Capability Built for Complex Parts
Resolute Precision Manufacturing is a precision CNC turning company providing reliable CNC Turning Services for prototypes, production runs, and complex turned components. Our Custom CNC turning capabilities support everything from simple cylindrical parts to multi-feature components that may otherwise require multiple machining operations.

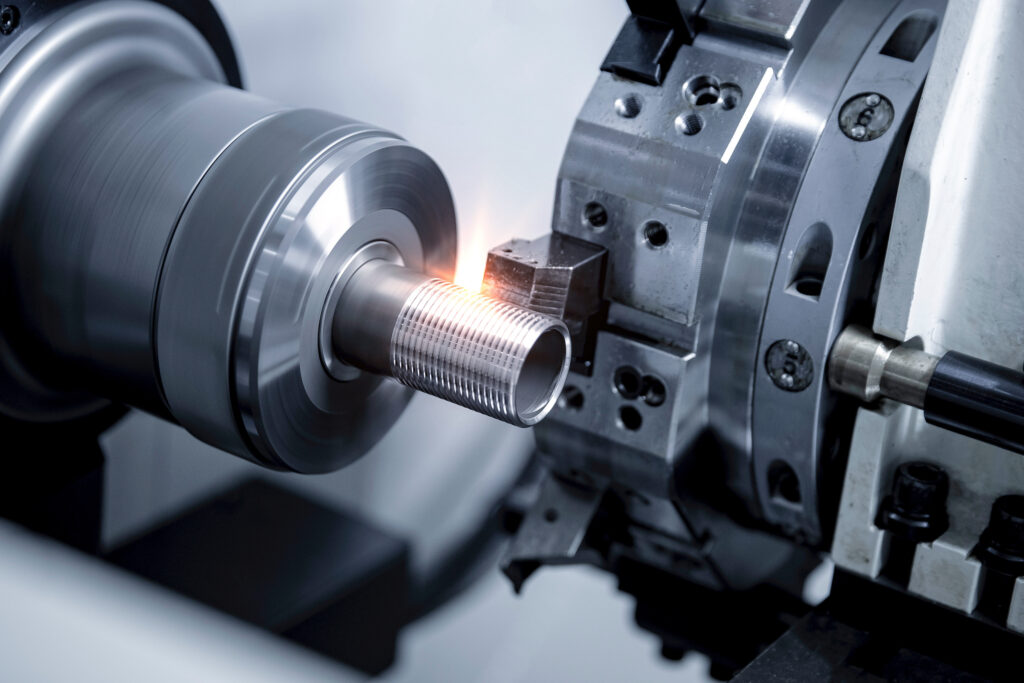

With live tooling on all of our lathes, our CNC Turning Services can combine threading, grooving, cross-drilling, and milling features with OD and ID turning in the same setup. This single-setup approach reduces re-fixturing, minimizes handling time, and helps shorten production lead times.
For long, slender components requiring excellent concentricity and surface finish, our Swiss CNC machines support the workpiece at the cutting zone using a guide bushing. This allows our CNC turning company to produce parts that may deflect or vibrate on conventional lathes.
More CNC Turning Services Services
Bar-Fed Production for Consistent High Volume
Our bar-fed setup accepts bar stock from 3/8 inch to 3.2 inches in diameter and up to 12 feet long. Automatic bar feeders support continuous production with minimal operator intervention, while select cells can be loaded for unattended overnight runs.
For larger chucked workpieces, our turning centers handle diameters up to 25.5 inches and lengths up to 44 inches. These capabilities allow our CNC Turning Services to support both high-volume production and specialized Custom CNC turning requirements.
Applications for Precision Turned Parts
CNC turned parts from Resolute Precision Manufacturing serve applications across multiple industries. If your product requires a cylindrical or round component including shafts, bushings, fittings, valve bodies, fasteners, spacers, pins, or sleeves our CNC turning company can produce components to your specified material, dimensions, tolerances, and production volume.
- Fluid power: Valve spools, hydraulic fittings, cylinder components, metering pins
- Medical devices: Implant components, instrument bodies, Swiss-turned surgical parts
- Automotive: High-volume sub-assembly fasteners and sensor components
- Aerospace: Tight-tolerance aluminum, stainless steel, and titanium turned components
- Custom fasteners: Screws, bolts, inserts, threaded fittings, specialty hardware
Specifications
| Swiss CNC | 20mm, 32mm, and 38mm — bar stock to 1-5/8″ diameter |
| Bar-Fed Turning | 3/8″ to 3.2″ diameter × 12′ long bar stock |
| Max Turned Diameter | 25.5″ diameter × 44″ length |
| Live Tooling | Standard on all lathes — threading, grooving, cross-drilling, milling |
| Multi-Axis | 2-axis, Y-axis dual spindle, 9-axis mill/turn |
| Deep-Hole Drilling | Up to 5–8× diameter (5–8xD) |
| Metals | Steel, stainless, alloy steel, brass, aluminum, copper, bronze, titanium, zinc |
| Plastics | Delrin, PEEK, nylon, polycarbonate, HDPE, PTFE, ABS, PVC |
| Volume | 1-piece prototype to 500,000+ parts per year |
| Certifications | ISO 9001:2015 |
Frequently Asked Questions
We turn all standard industrial metals including steel, stainless steel, alloy steel, brass, aluminum, copper, bronze, titanium, and zinc plus engineering plastics including Delrin, PEEK, nylon, polycarbonate, HDPE, PTFE, ABS, and PVC.
Yes. We produce prototype quantities from one piece and scale to production runs of hundreds of thousands of parts using the same equipment and setups.
We routinely hold tolerances of ±0.001″ or better. Swiss CNC achieves ±0.0005″ or tighter on small-diameter parts. Achievable tolerance depends on geometry, material, and feature requirements.
Yes. All bar-fed lathes have live tooling cross-holes, flats, slots, and keyways are machined in the same setup as turning. No secondary milling operation is required.
