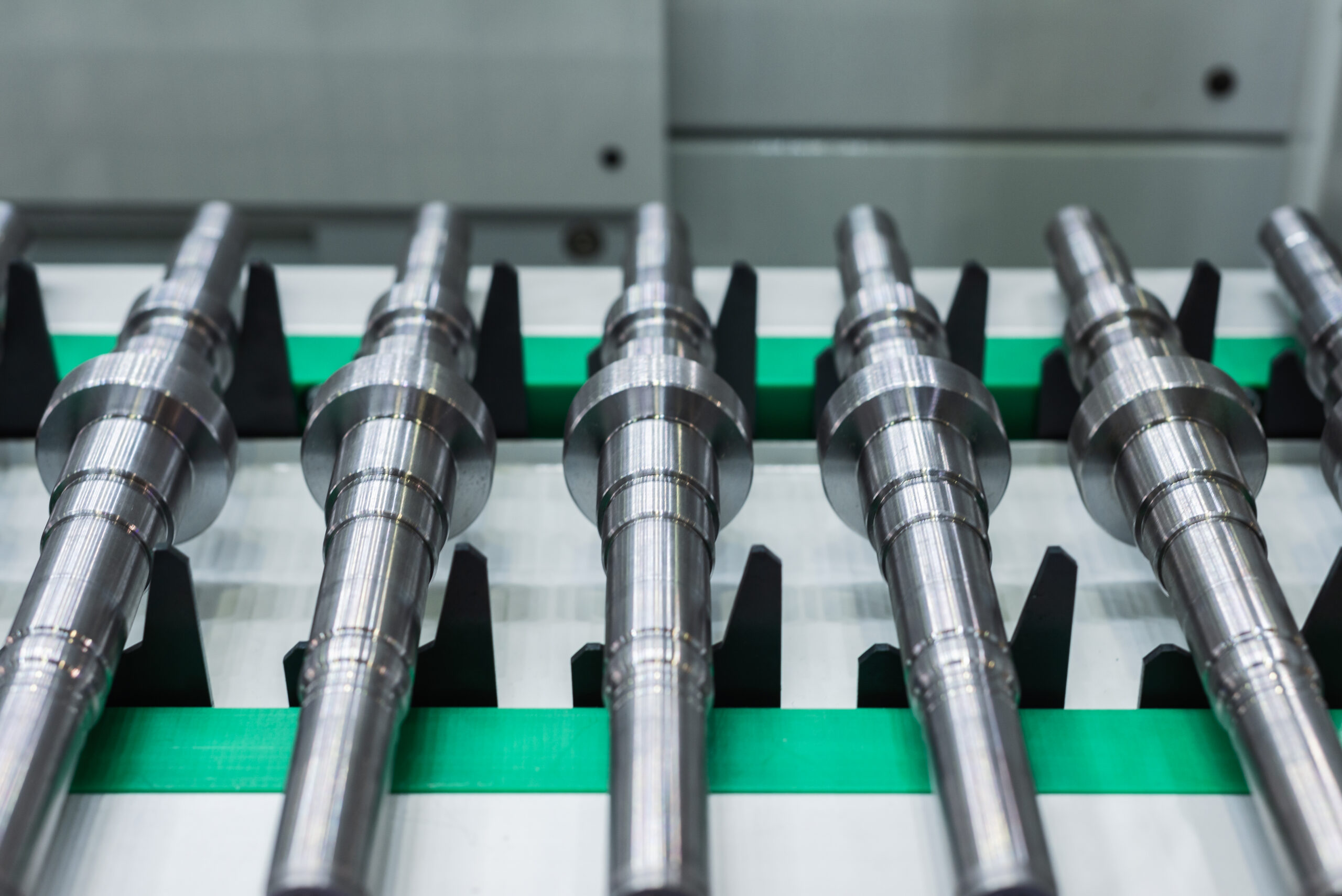

Custom Machined Shafts

Resolute Precision Manufacturing produces precision CNC turned shafts to drawing — stepped shafts, splined shafts, keyed shafts, and threaded shafts — in steel, stainless, aluminum, and brass. From small diameter shafts on our Swiss CNC machines to large shafts up to 25.5 inches in diameter on our chucked turning centers, we produce shafts with all features complete in a single setup for maximum concentricity and accuracy.

Request a Quote

Shaft Geometry and the Case for Single-Setup Turning

A precision shaft transmits torque, supports loads, or establishes a reference axis in a mechanical assembly. The dimensional features that matter most diameter tolerances for bearing fits, journal surface finish, runout between bearing seats, squareness of shoulders to the shaft axis, and positional accuracy of keyways and spline features are all most accurately produced when the shaft is machined in one setup without being removed from the chuck or spindle. Resolute Precision’s Y-axis dual spindle and 9-axis mill/turn lathes are configured to produce complete shafts in one cycle. The same machine that turns and finishes the OD diameters also drills the center holes, threads the ends, mills the keyways, and machines the flats all referenced to a single datum with no re-chucking error accumulating between features.

Our Services

Shaft Features Machined in One Setup

Our live tooling lathes complete all of the following shaft features without secondary operations:

Stepped diameter profiles — Multiple OD steps turned and finished in sequence.
Keyways — Milled with live tooling at any angular position along the shaft OD.
Threaded ends — Internal and external threads at shaft ends completed in the same turning cycle.
Flats and hex profiles — Live tooling mills drive flats at specified positions.
Cross-holes and radial holes — Drilled with live tooling at any position and angle.
Ground surfaces — Final OD grinding coordinated through outside operations for the highest surface finish.

Specifications

Diameter Range	Small shafts on Swiss CNC (up to 38mm); standard shafts bar-fed up to 3.2″; large shafts chucked up to 25.5″
Length	Bar-fed: up to 12′ long; chucked: up to 44″ length
Keyways	Milled with live tooling in the same setup; parallel, Woodruff, and custom profiles
Threads	Internal and external threads at shaft ends; any thread form and pitch
Runout	Concentric turning in one setup; bearing seat runout up to 0.0005″ TIR achievable
Surface Finish	As-machined Ra 32–63 microinch standard; ground finish coordinated for Ra 16 or better
Metals	Steel (1018/4140/4340/8620), stainless steel (303/304/316/17-4PH), aluminum (6061/7075), brass
Heat Treatment	Coordinated through outside operations; quench & temper (Q&T), induction hardening, and carburizing available
Certifications	ISO 9001:2015

Shaft Applications From RPM

Precision machined shafts from Resolute Precision serve drive, support, and reference applications across multiple industries:

Motor and gearbox shafts — Stepped OD shafts with keyways and bearing seat diameters.
Pump shafts — Sealed-surface shafts in stainless steel for fluid handling applications.
Conveyor drive shafts — Alloy steel shafts with spline or key drive features.
Medical device shafts — Small-diameter stainless steel shafts for surgical instrument drives.
Aerospace actuator shafts — Titanium and 17-4 PH stainless steel shafts for flight control systems.
Precision spindle shafts — High-accuracy shafts for machine tool and metrology applications.

Frequently Asked Questions

What is the straightness tolerance RPM can hold on a long shaft?

Straightness on long shafts is influenced by material residual stress, work holding, and turning parameters. For shafts requiring tight straightness, we use steady rests and controlled cutting parameters. Typical straightness of 0.001″ per foot is achievable on properly supported shafts in stress-relieved material.

Can RPM produce splined shafts ?

Yes. Involute splines and parallel key splines are machined on our mill/turn and live tooling lathes. For standard ANSI or DIN spline profiles, we machine to the standard specification. Custom spline profiles are machined to drawing.

What material is recommended for a shaft requiring both strength and corrosion resistance?

17-4 PH stainless steel is the most common choice — it offers high tensile strength (up to 220 KSI condition H900) combined with good corrosion resistance. For less demanding corrosion environments, 4140 steel with appropriate coating provides a lower-cost alternative.

Can RPM coordinate grinding to a final shaft diameter after turning?

Yes. Through our outside operations services, we coordinate OD grinding to specified diameter and surface finish after turning and heat treatment. We manage the complete process — you receive a fully finished shaft from one purchase order.
