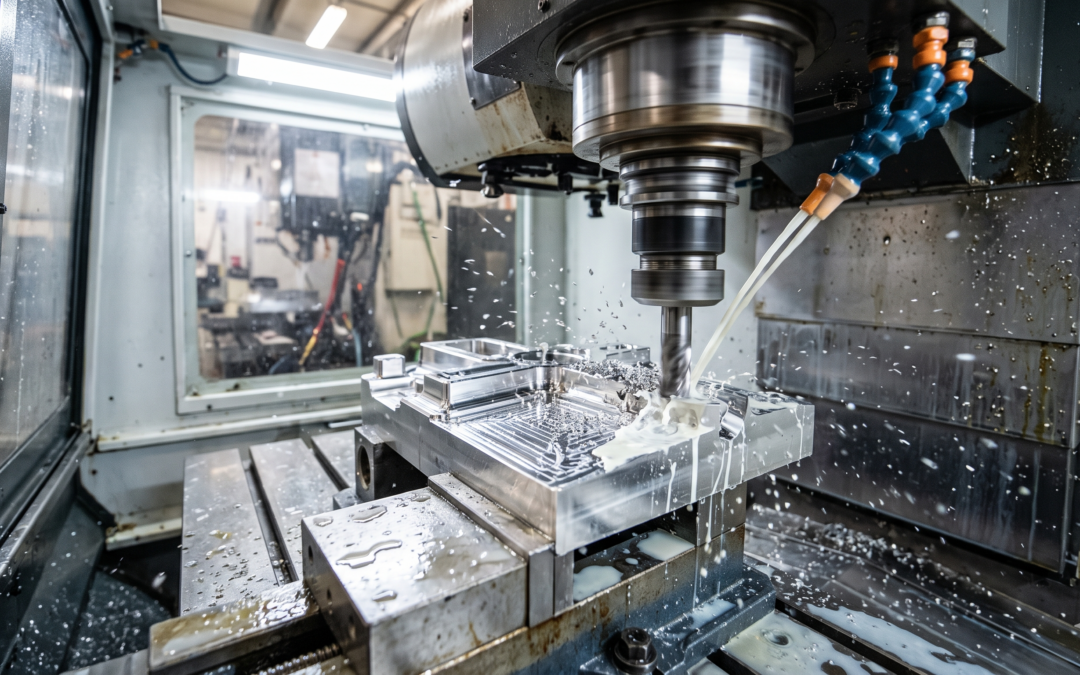

Tolerance specification is one of the areas where engineering and machining cost intersect most directly. A tolerance that is tighter than the application requires adds machining time, inspection time, scrap risk, and per-part cost — without improving the performance of the final assembly. A tolerance that is looser than the assembly requires causes fit problems, assembly difficulty, and quality escapes.
This article is a practical guide to understanding what tolerances CNC machining can hold, how to decide what tolerance your application actually needs, and how to avoid the common mistake of overspecifying tolerance across an entire drawing.
What Tolerances Can CNC Machining Hold?
CNC machining tolerance capability depends on the process, the machine, the material, and the part geometry. Here is a realistic picture of what each process delivers:
| Process | Standard Tolerance | Precision Tolerance | Notes |
|---|---|---|---|
| CNC Turning (Bar-Fed Lathe) | ±0.001″ | ±0.0005″ | Dependent on diameter and part length. |
| Swiss CNC Machining | ±0.0005″ | ±0.0002″ | Best suited for small-diameter, long-length parts. |
| CNC Milling (3-Axis) | ±0.001″ | ±0.0005″ | Dependent on feature geometry and fixturing. |
| CNC Milling (5-Axis) | ±0.001″ | ±0.0005″ | Compound-angle features may require additional setup and inspection to maintain tight tolerances. |
| OD Cylindrical Grinding | ±0.0001″ | ±0.00005″ | Used for final sizing and finishing after turning or heat treatment. |
| ID Honing | ±0.0002″ | ±0.0001″ | Used for final bore sizing, surface finish, and roundness. |
These are achievable tolerances under controlled conditions, including correct tooling, proper setup, a temperature-controlled environment, and appropriate inspection. Tolerances at the tighter end of these ranges require more time and care and therefore cost more per part.
What Does a ±0.001" Tolerance Mean in Practice?
One thousandth of an inch (0.001″) is a common standard machining tolerance. For context: a human hair is approximately 0.002″ to 0.003″ in diameter. A standard machining tolerance of ±0.001″ means the feature can be up to 0.001″ larger or smaller than the nominal dimension – a total variation of 0.002″.
For most mechanical assemblies – brackets, housings, structural components, and general-purpose turned parts – ±0.001″ is perfectly adequate. The part fits, the assembly works, and the cost is reasonable.
Tighter tolerances – ±0.0005″ and below -become necessary when the application has specific requirements that ±0.001″ cannot satisfy:
- Bearing fits – a bearing OD is held to tight tolerance by the bearing manufacturer, and the housing bore must match within 0.0005″ to achieve the intended fit class
- Hydraulic spool valves – spool-to-bore clearance of 0.0003″ to 0.0005″ controls leakage; achieving this requires the spool OD to be held to ±0.0002″
- Precision gears – pitch circle diameter and tooth form must be held to tight limits to achieve specified backlash and contact ratio
- Gage and reference surfaces – inspection tooling and reference fixtures require tolerances tighter than the parts they measure
The Cost of Overspecifying Tolerance
Tight tolerances cost money. Not because machine shops arbitrarily charge more, but because tighter tolerances require:
- Slower cutting speeds to reduce vibration and heat-induced dimensional drift
- More frequent in-process measurement during production
- Higher scrap rates – parts that barely miss a ±0.0001″ band are scrapped, while the same part would be accepted at ±0.001″
- Sometimes entirely different processes – grinding instead of turning, honing instead of boring
When a drawing calls for ±0.0005″ on every dimension – including non-critical surfaces, cosmetic features, and through-hole locations – the cost of that drawing is substantially higher than a drawing that correctly identifies which features need tight tolerance and specifies looser tolerances where they are functionally adequate.
How to Identify Which Features Actually Need Tight Tolerance
Ask these four questions for each toleranced feature on your drawing:
- Does this feature mate with another part? If yes, the fit type (clearance, transition, interference) determines the required tolerance band.
- Does this feature carry load, seal fluid, or locate a bearing? If yes, it likely needs tight tolerance. If it is a structural surface with bolt clearance, it probably does not.
- What is the tolerance stack-up through the assembly? Individual features may need to be tighter than the assembly requirement to ensure the assembly stays within spec after multiple parts are combined.
- Will the part be heat treated after machining? Heat treating introduces distortion. Features that must be tight after heat treatment require grinding or honing after the heat treat — not just tight turning before it.
Tight Tolerance After Heat Treatment — A Common Design Mistake
One of the most common tolerance specification errors is placing tight diameter tolerances on a shaft that will be quench hardened after machining. Quench hardening introduces distortion – shafts bow slightly, OD dimensions change, and the carefully machined ±0.001″ diameter is no longer within tolerance after the heat treat cycle.
The correct design approach for hardened shafts requiring tight bearing seat dimensions is: machine the shaft with a grinding stock allowance (0.005″ to 0.015″ oversize depending on diameter and severity of quench), heat treat, and then OD grind to final dimension. The tight tolerance on the bearing seat is achieved by the grinding operation after heat treat – not by the turning operation before it.
This is exactly the kind of process guidance a direct machine shop provides. Resolute Precision reviews your drawing during the quoting process and flags design decisions that will complicate production or increase cost without improving the finished part.
What RPM Does to Hold Tight Tolerances
Tight tolerance production at Resolute Precision involves several specific practices:
- Swiss CNC for small-diameter parts – the guide bushing system eliminates workpiece deflection, enabling consistent ±0.0005″ tolerances on small-diameter turned parts
- In-process measurement – critical dimensions are measured during production at defined intervals, catching drift before it produces scrap
- Climate-controlled inspection – precision measurement is performed in a temperature-controlled environment to eliminate thermal expansion error
- Calibrated inspection tooling – all measuring instruments are calibrated on schedule traceable to NIST standards
- Grinding coordination – for features requiring tolerances tighter than turning can consistently hold, we coordinate OD or ID grinding through our outside operations network
Summary
Tight tolerance CNC machining is absolutely achievable – and necessary for applications where assembly fit, sealing performance, or bearing location demand it. But tight tolerances add cost, and overspecifying them across features that do not require them wastes money without improving your product.
Specify tight tolerances where the assembly demands them. Specify looser tolerances where they are functionally adequate. If you are unsure what your application requires, send us the drawing and tell us what the part does – we will review the tolerance requirements and advise.
